Accsoon 3-Wireless Monitoring System kit

Category:
Brand:

Accsoon 3-monitor vertical rig is a cage system with three Accsoon M7 Pro monitors for vertical-format monitoring, supporting CineView wireless TX/RX, 4K60 HDMI I/O, SD card recording per monitor, and shared D-Tap/V-mount power with stand mount.

82,50  / day

Clear dates

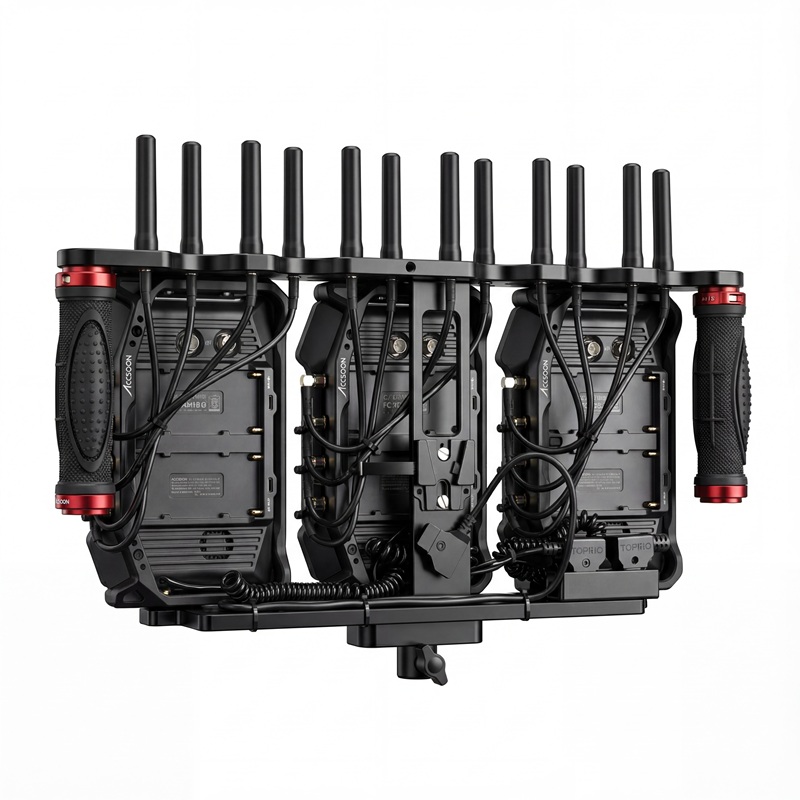

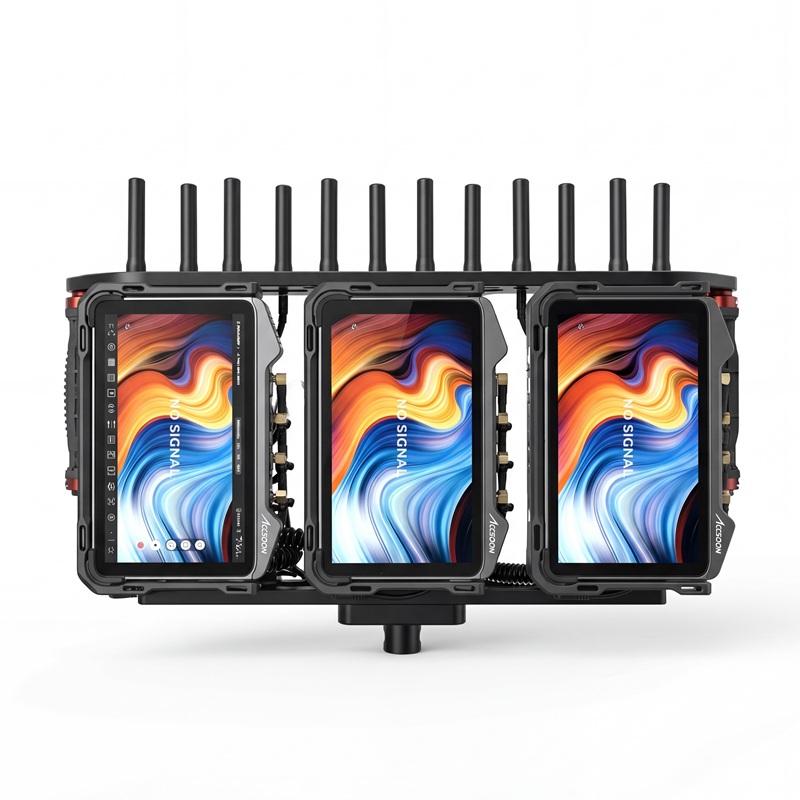

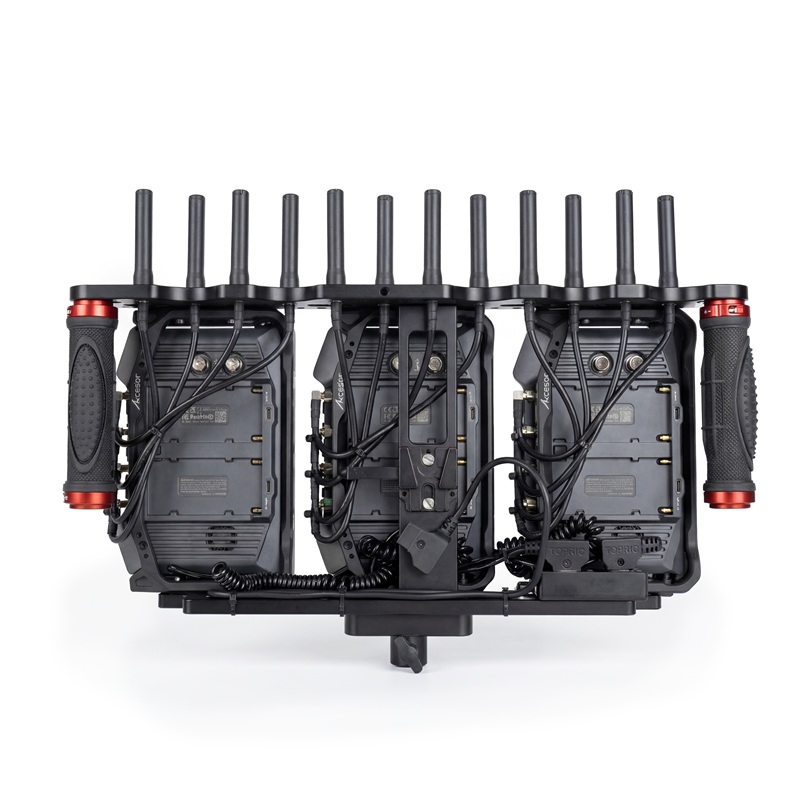

Accsoon 3-Wireless Monitoring System is a unique setup consisting of three Accsoon M7 Pro monitors integrated into a specially designed cage. This solution is intended for real-time monitoring in the highly in-demand vertical video format. The system is built around Accsoon M7 Pro monitors that can receive and transmit video signals from the full range of CineView video transmitters (CineView QUAD/HE/SE, CineView 2 SDI, CineView Master 4K), allowing full use of their capabilities. Wireless transmission over 2.4 GHz and 5 GHz Wi-Fi reduces on-set cabling, while remote camera control (camera support required; refer to manufacturer specifications) simplifies workflow management from a single device. Each monitor is factory calibrated for accurate color reproduction (Delta E < 2, Rec.709 color space), delivers 1000 nits brightness, and features DXC coating that increases light transmission up to 99%. Each monitor has a resolution of 1920×1080 pixels. The monitors support video signals up to 4096×2160 60p for both input and output. Each monitor supports recording to an SDXC memory card. All monitors share a unified power system via a D-Tap connector, and the rig includes a V-Lock mount for a V-Mount battery, enabling long and uninterrupted operation. For handheld use, the kit includes two handles; for studio setups, it includes a mount for installation on a stand with a standard 16 mm spigot. Included: three monitors mounted in a rig, protective case.

Inputs

3.5 mm TRS, HDMI 2.0/3G-SDI, SDXC, USB-C (PD)

Outputs

3.5 mm CTIA, HDMI 2.0/3G-SDI, USB-C

Net weight

7.90 kg (with case)

Brightness

1000 nits

Color space

Delta E < 2, Rec.709 gamut

Cooling

active + passive

Dimensions (W x H x D)

530x400x144 mm (in case)

Operating conditions

-10°C to +40°C

Power connectors

D-TAP 12 V

Power consumption

12-28 W (depending on actual usage mode)

Radio frequency

2.4 GHz and 5 GHz Wi-Fi

Screen resolution

1920×1200 px

Screen size

7"

Signal conversion

SDI & HDMI cross-converter

Signal latency

60 ms

Signal range

up to 350 m

Stand mount

16 mm

Transceiver type

TX & RX

Type

capacitive touchscreen, Ultra High Resolution

Viewing angle

176°/176°
