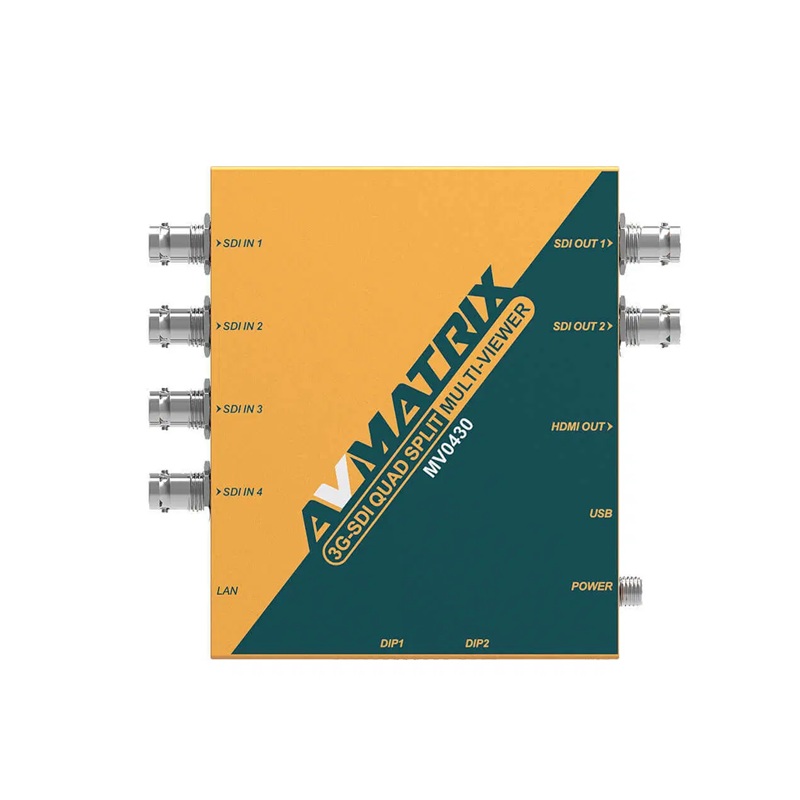

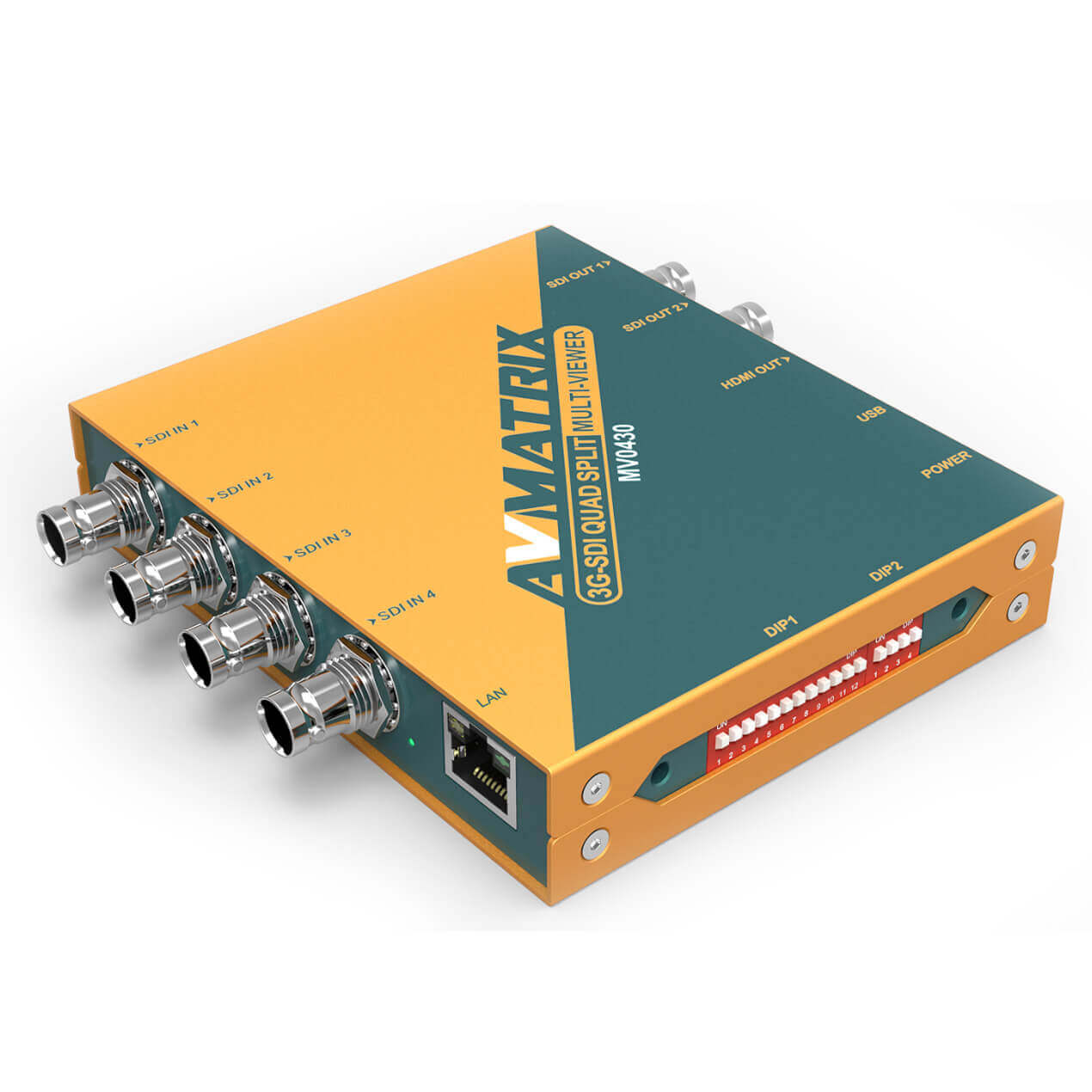

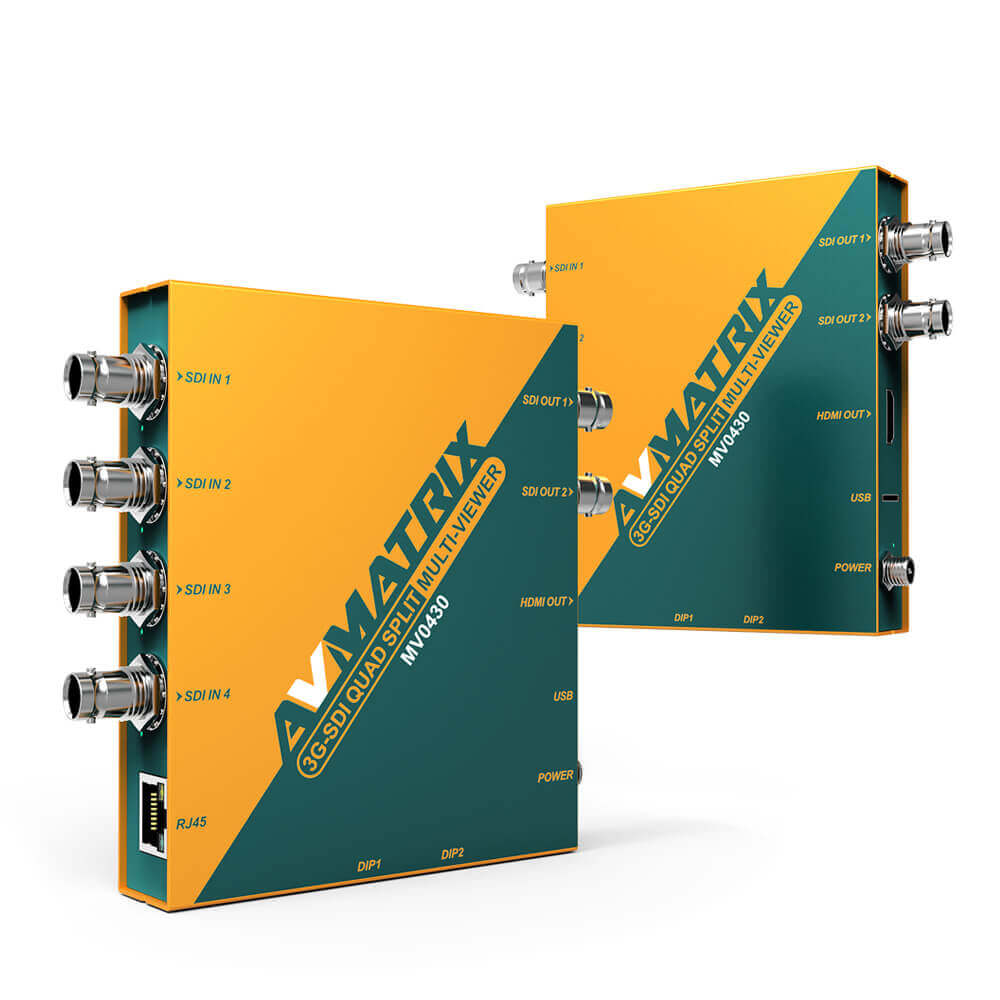

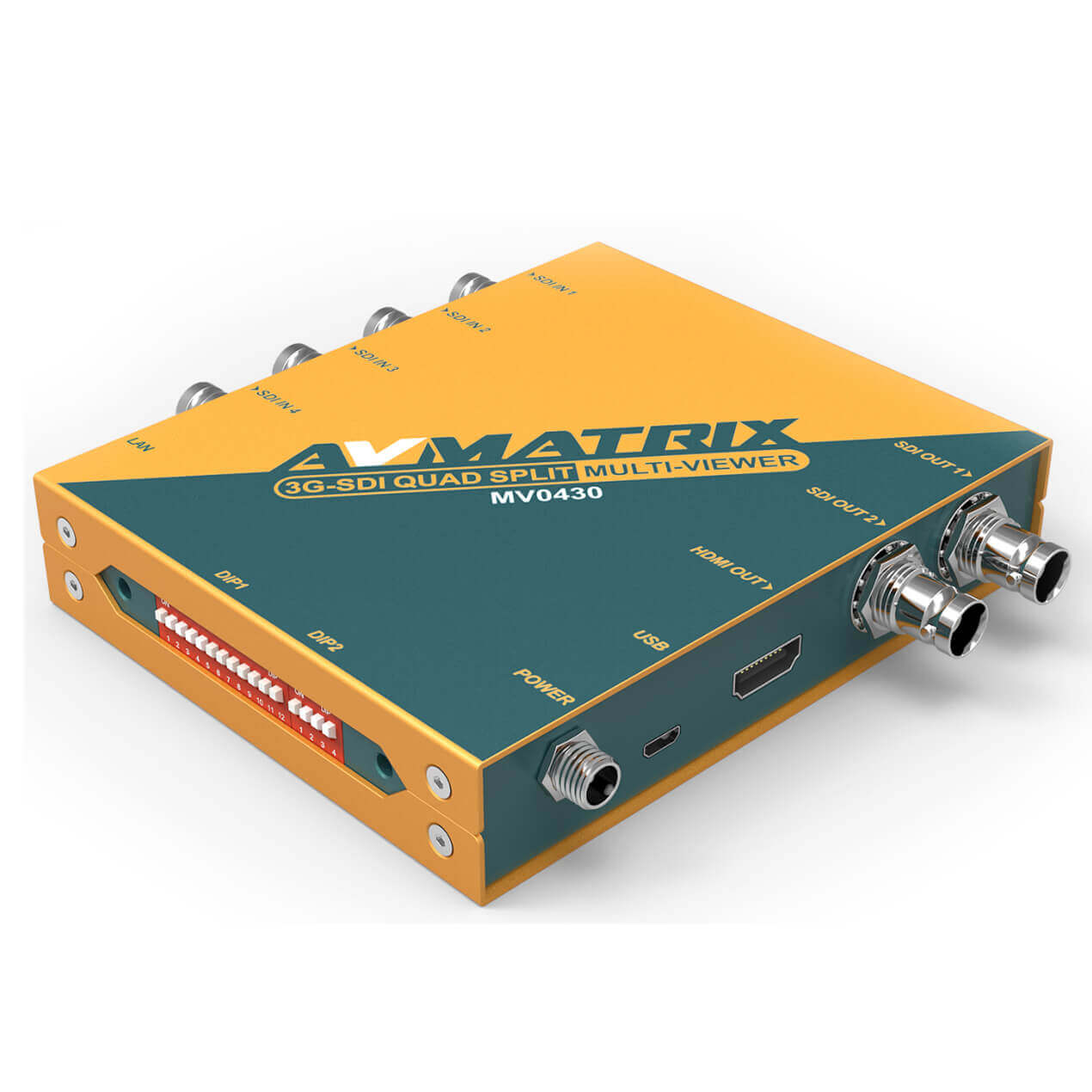

Name: AVMATRIX MV0430 3G-SDI QUAD SPLIT 4CH multiviewer
Brand: Avmatrix
SKU: 8619
Availability: InStock

AVMATRIX MV0430 3G-SDI QUAD SPLIT 4CH multiviewer

4-input multiview SDI/HDMI unit is a multiviewer with 4× SD/HD/3G-SDI inputs, SDI and HDMI outputs, selectable layouts, UMD/audio overlays, and control via DIP/USB keyboard/Ethernet.

12,00 € / day

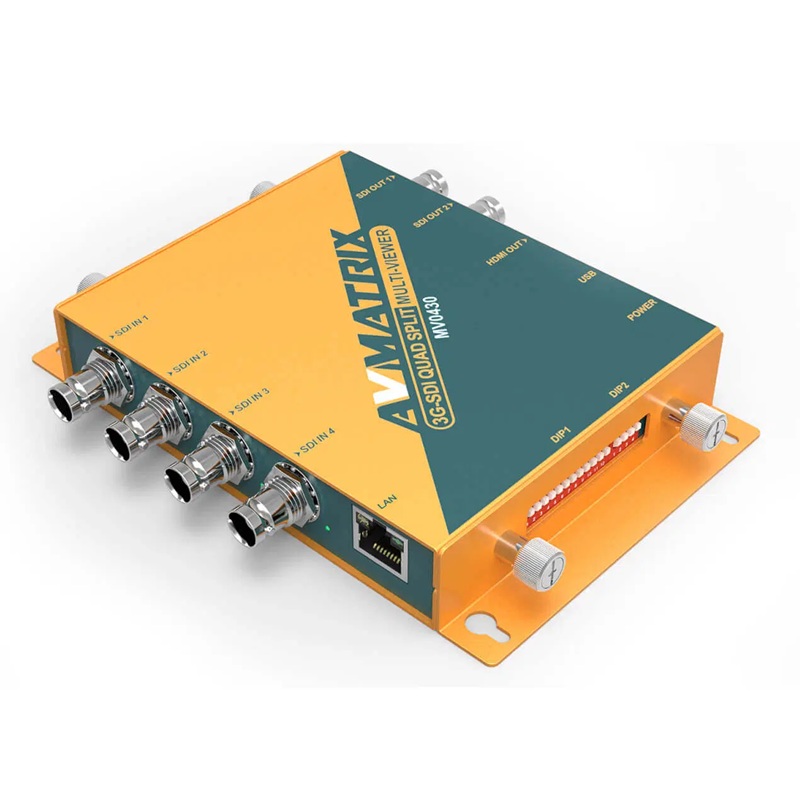

Multi-view SDI/HDMI unit with 4× SD/HD/3G-SDI inputs with automatic detection, 2× SD/HD/3G-SDI outputs and 1× HDMI output for multi-screen viewing. Supports 11 selectable SDI and HDMI output formats and 16 preset layouts for full-screen or multi-window modes. Features UMD overlay up to 11 characters with adjustable position and color, audio level meter overlay with adjustable position, simple control via DIP switches, USB port for keyboard control, Ethernet port for control and firmware updates, locking threaded power connector, and detachable mounting bracket for wall installation.

Inputs	SD/HD/3G-SDI x4
Outputs	HDMI Type-A x1, SD/HD/3G-SDI x2
Net weight	465 g
Color space	YUV for output, YUV or RGB for input
Control	DIP switches (configuration), LAN port (configuration & upgrade), USB port (USB keyboard)
Dimensions (W x H x D)	125.5x104x24.5 mm
Interfaces	LAN RJ-45, USB-C
Number of connectable video sources	4
Operating conditions	-20 to 60°C (HDMI out: 0 to 60°C), humidity 0-90% (non-condensing)
Power consumption	6.0 W
Power requirements	DC 6-24 V
Resolution	1080i 60/50, 720p 60/50/30/25, Output: 1080p 60/50/30/25/24
Supported protocols	SMPTE 259M, SMPTE 292M, SMPTE 424M
Supported signal formats	1080i 60/59.94/50, 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080PsF 30/29.97/25/24/23.98, 525i 59.94 NTSC, 625i 50 PAL, 720p 60/59.94/50/30/29.97/25/24/23.98
