Name: AVMATRIX SC7030 multi-signal to HDMI and SDI converter
Brand: Avmatrix
SKU: 8601
Availability: InStock

AVMATRIX SC7030 multi-signal to HDMI and SDI converter

Multi-format scaler/converter is a signal converter with SDI/HDMI outputs supporting up to 1080p60, scaling/frame-rate conversion, aspect correction, analog audio embedding, and control via DIP switches or PC software.

11,50 € / day

Signal conversion: SDI, HDMI, DVI-I, VGA, CVBS, S-video, YPbPr
Output formats: SDI (x2), HDMI (x1)
Supports up to 1080p60
Scaling (up/down)
Frame rate conversion
Aspect ratio correction (4:3/16:9)
Analog audio embedding

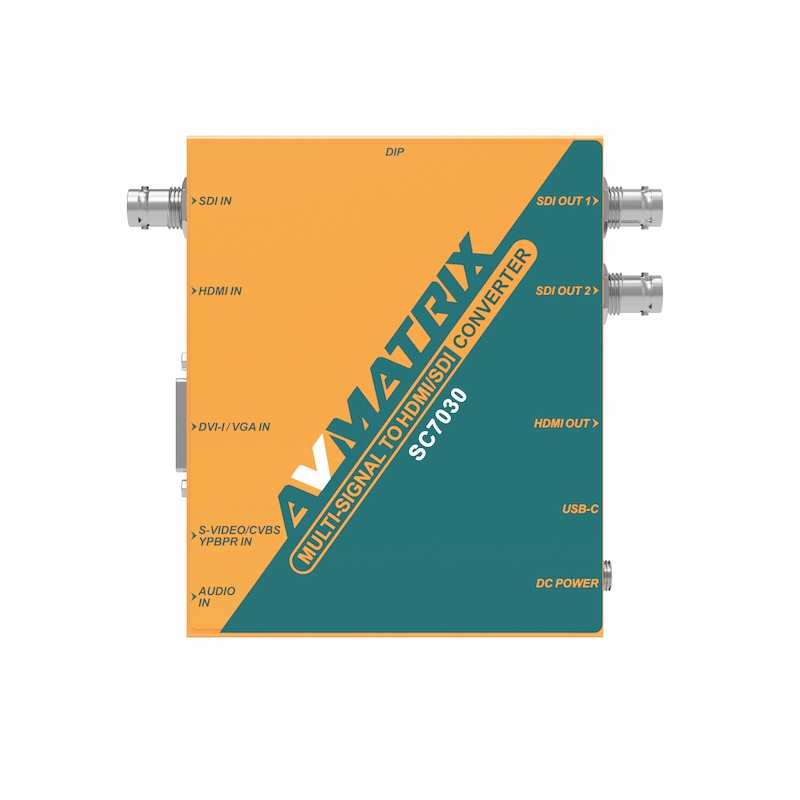

Universal connectivity: Inputs: SDI, HDMI, DVI-I, VGA, CVBS, S-video, YPbPr; Outputs: 2×SDI, 1×HDMI

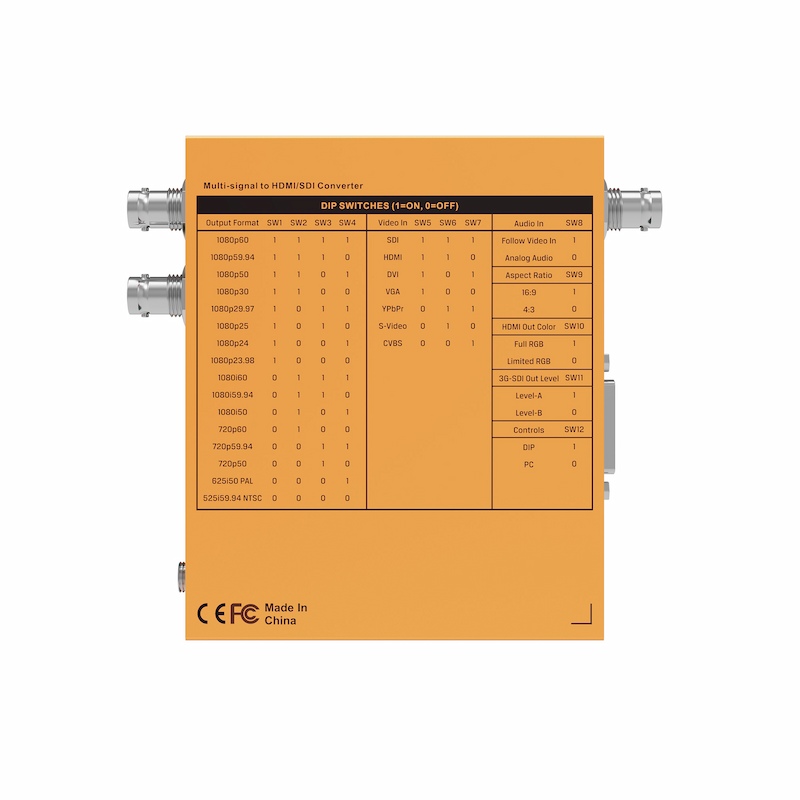

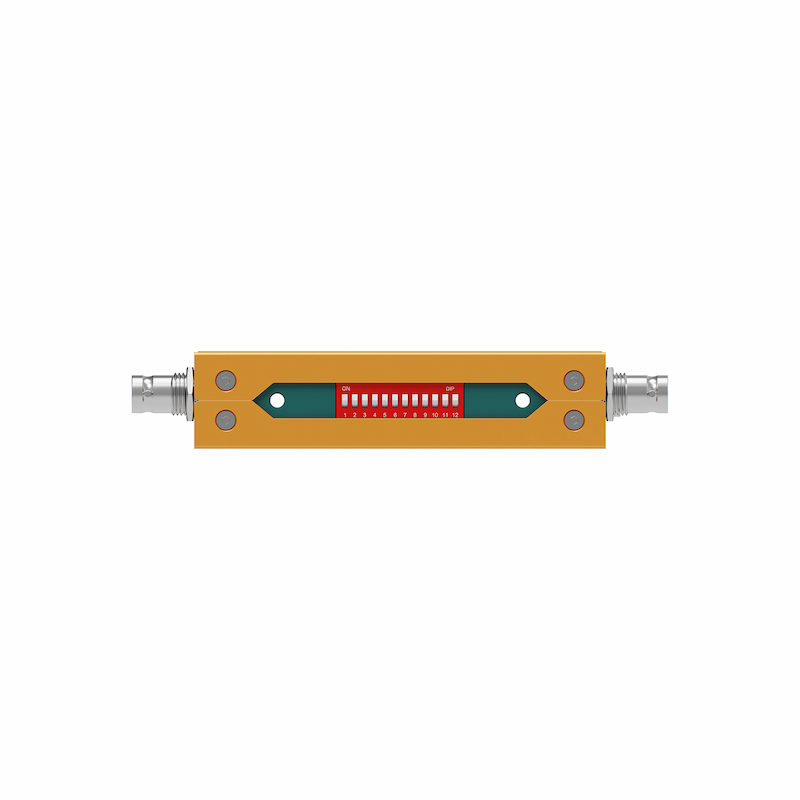

Flexible control: DIP switches for basic settings; PC software for remote control
Indicators: signal and power LEDs
Power: 12V DC or USB-C 5V
Live streaming and broadcasting
Video conferencing and streaming productions
Presentations and multimedia installations
Integration of legacy equipment into modern systems

Inputs	1x DVI-I/VGA, 1x HDMI, 1x S-Video/CVBS/YPbPr, 1x SDI
Outputs	1x HDMI, 2x SDI
Net weight	496.1 g
Color space	HDMI input: RGB 4:4:4 8/10/12-bit, HDMI output: RGB 4:4:4 8-bit, SDI input: YUV 4:2:2 10-bit, SDI output: YUV 4:2:2 10-bit, YUV 4:2:2 8/10/12-bit, YUV 4:4:4 8/10/12-bit
Dimensions (W x H x D)	104×125.5×24.5 mm
Operating conditions	-20 to 60°C, humidity 20-90% (non-condensing)
Power consumption	≤5.5 W
Power requirements	12 V (DC 6-24 V range), USB 5 V
