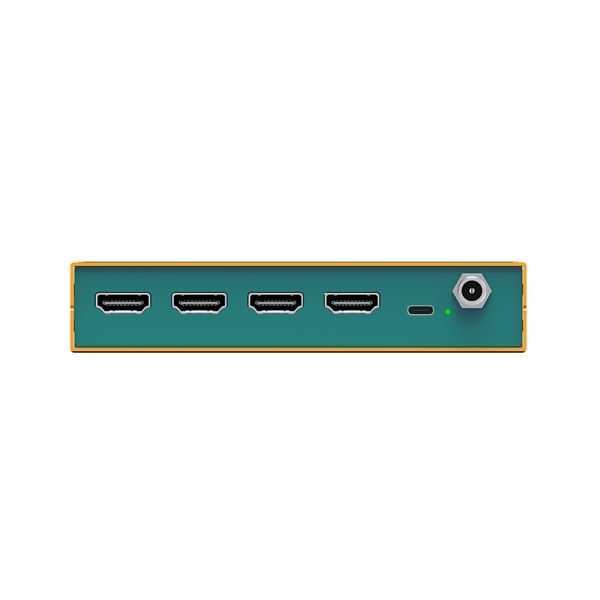

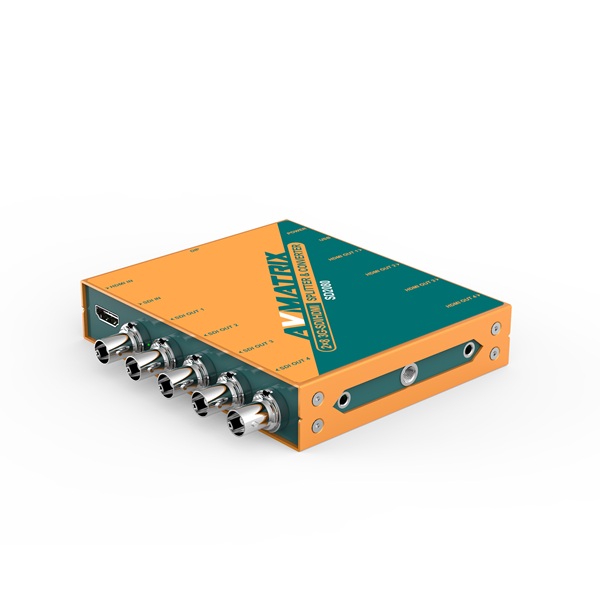

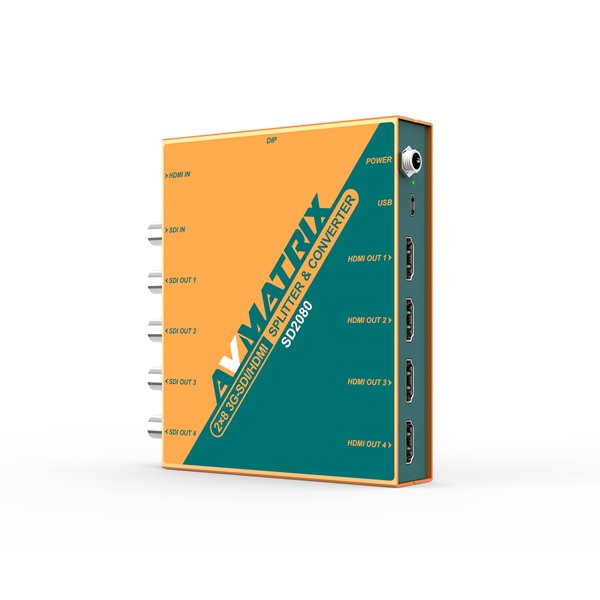

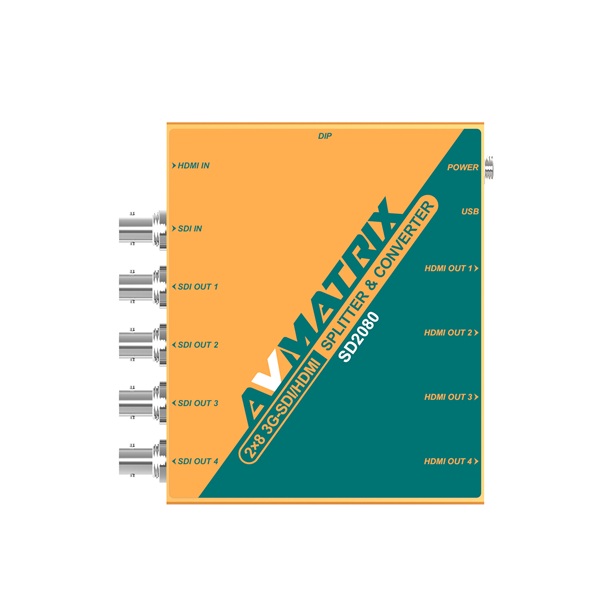

Name: AVMATRIX SD2080 2x8 SDI/HDMI splitter converter
Brand: Avmatrix
SKU: 8627
Availability: InStock

AVMATRIX SD2080 2×8 SDI/HDMI splitter converter

AVMATRIX SD2080 2×8 is an HDMI/3G-SDI distribution converter with selectable input (HDMI or SDI) and 4× SDI + 4× HDMI outputs, supporting up to 1080p60.

16,50 € / day

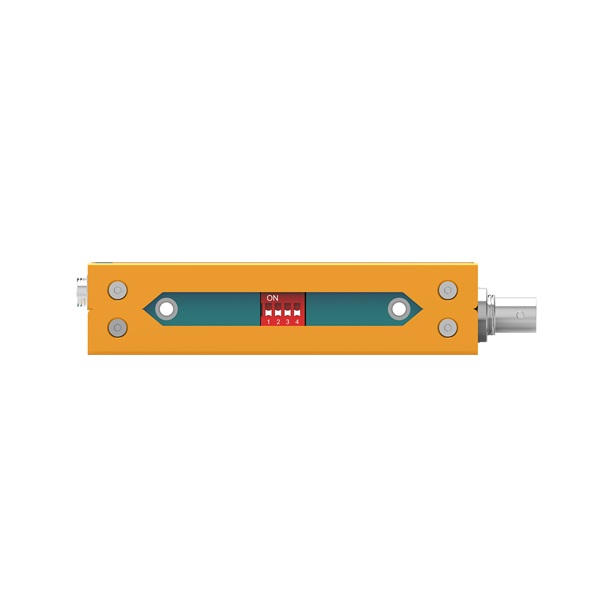

AVMATRIX SD2080 2×8 SDI/HDMI is a professional splitter and converter that distributes SDI and HDMI signals. The device can transmit one input signal to eight parallel SDI and HDMI outputs simultaneously, suitable for broadcast and AV studio applications. Auto-detecting input: 1× HDMI / 1× 3G-SDI. Outputs: 4× 3G-SDI and 4× HDMI. Supports SDI and HDMI distribution and conversion, SDI signal loss compensation and recovery, and input/output formats up to 1080p60. Input selection is controlled via DIP switches. Power is supplied via USB or a locking DC connector.

Compatibility	SDI standards: SMPTE 292M, SMPTE 259M, SMPTE 424M
Net weight	485 g
Chroma subsampling	HDMI: RGB 4:4:4, SDI: YUV 4:2:2, YUV 4:2:2, YUV 4:4:4
Compatible models	1080i 60/59.94/50, 1080p 30/29.97/25/24/23.98, 1080p 30/29.97/25/24/23.98/23.976, 1080PsF 30/29.97/25/24/23.98, 480i 59.94, 525i 59.94; HDMI input: 1080p 60/59.94/50, 525i 59.94; SDI output: 1080p 60/59.94/50, 576i 50, 625i 50, 720p 60/59.94/50, 720p 60/59.94/50/30/29.97/25, SDI input: 1080p 60/59.94/50
Data rate	SD/HD/3G-SDI
Dimensions (W x H x D)	125.5x104x24.5 mm
Power connectors	DC 12 V
Power requirements	6-28 V, 6.6 W
