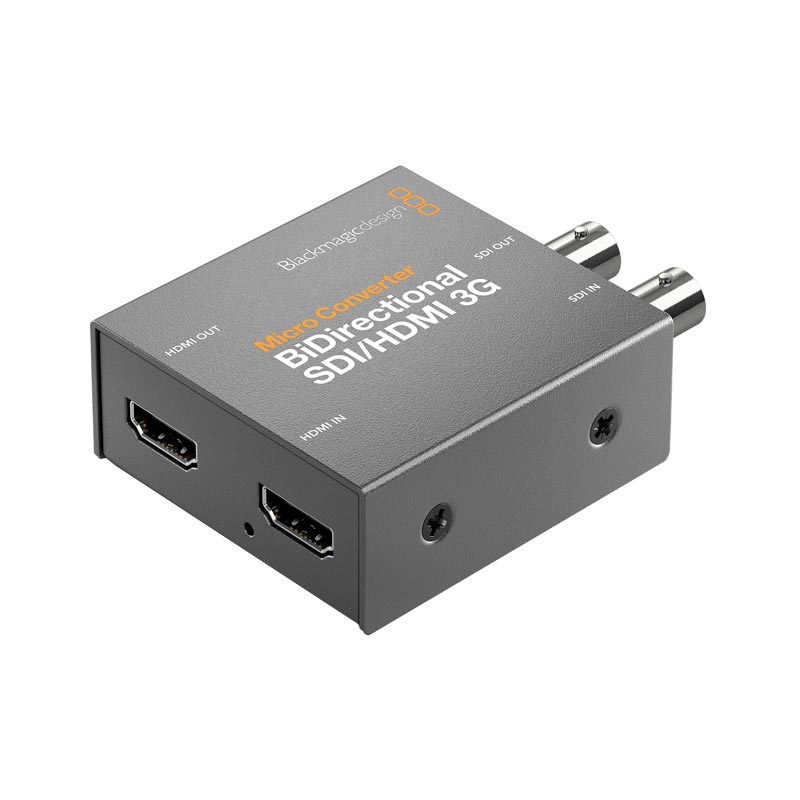

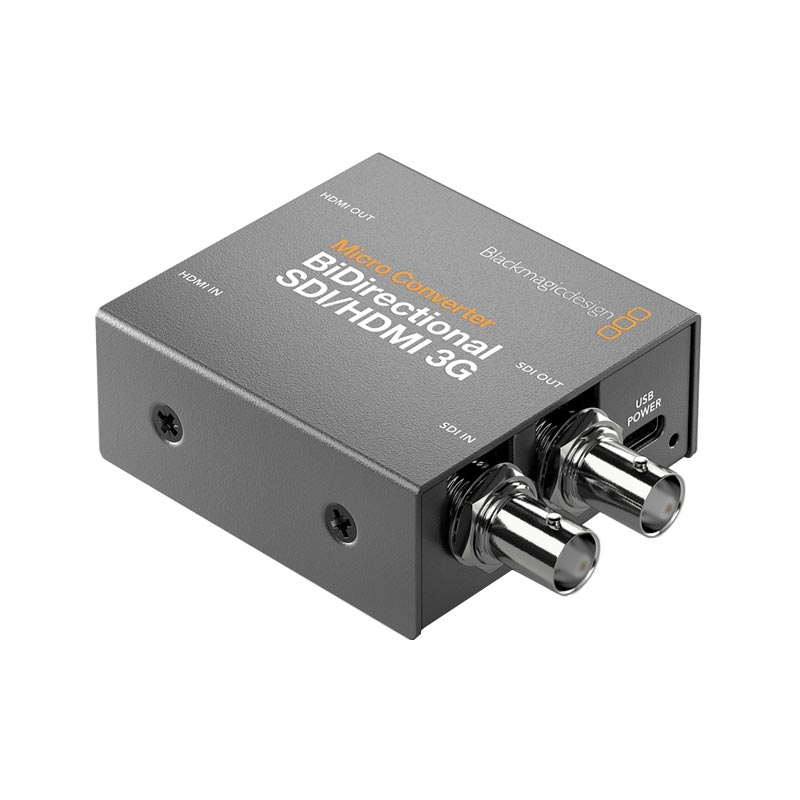

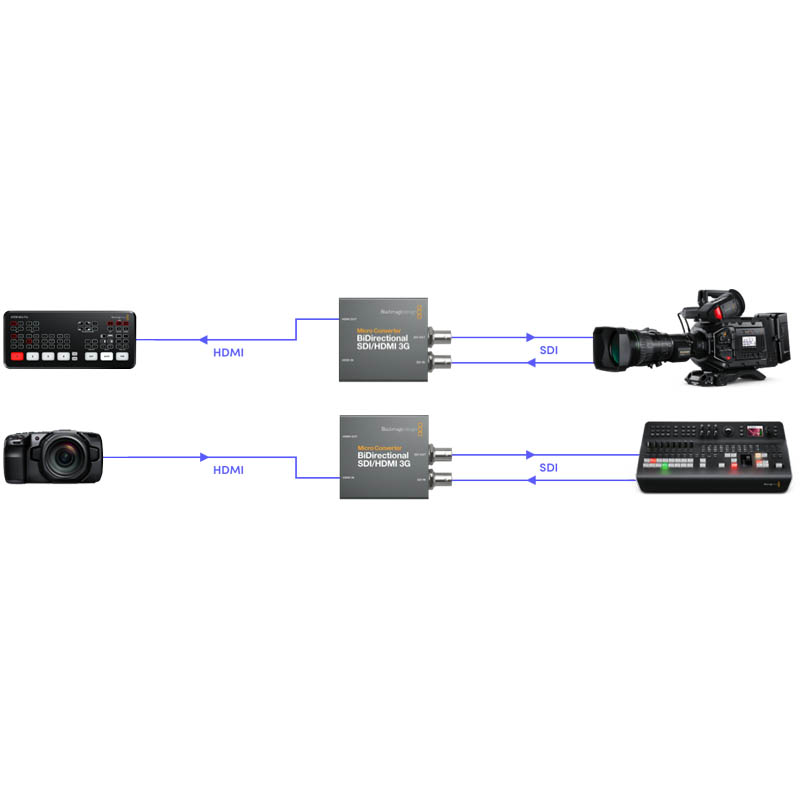

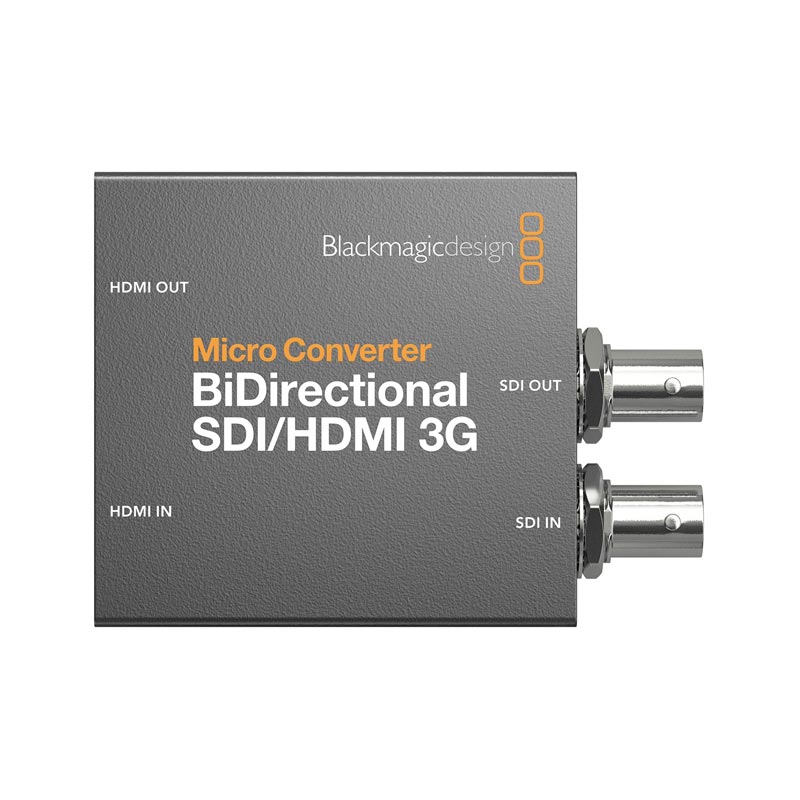

Blackmagic BiDirectional SDI-HDMI 3G converter supports simultaneous 1080p60 signal conversion from HDMI to SDI and SDI to HDMI. When only one input is active, both outputs operate as loop-through, enabling signal distribution to SDI or HDMI equipment. Compact dimensions (81 x 59 x 25 mm) and USB-C power input make it highly portable.
Supported features:
– Camera control protocol support for use with compatible cinema cameras and broadcast switchers
– 3D LUT support and timecode transmission
– Embedded audio transmission
– 4:2:2 color sampling
Supported formats:
– HDMI: SD 525i/59.94 NTSC, 625i/50 PAL; 720p/50, 59.94, 60; 1080p/23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1080i/50, 59.94, 60
– SDI: SD 525i/59.94 NTSC, 625i/50 PAL; 720p/50, 59.94, 60; 1080p/23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; 1080i/50, 59.94, 60; 1080PsF/25, 29.97, 30
Included: Blackmagic BiDirectional SDI-HDMI 3G converter, USB cable, power adapter.
