Eagles Hero Saturn S (1 TX + 2 RX) wireless video transmitter

Category:
Brand:

Eagles Hero Saturn S wireless video kit with 1× TX and 2× RX, 4K30 over HDMI (TX input), SDI input up to 1080p60, dual-band 2.4/5 GHz, latency ≤0.05 s, up to 400 m; supports UVC and RTMP streaming.

74,00  / day

Clear dates

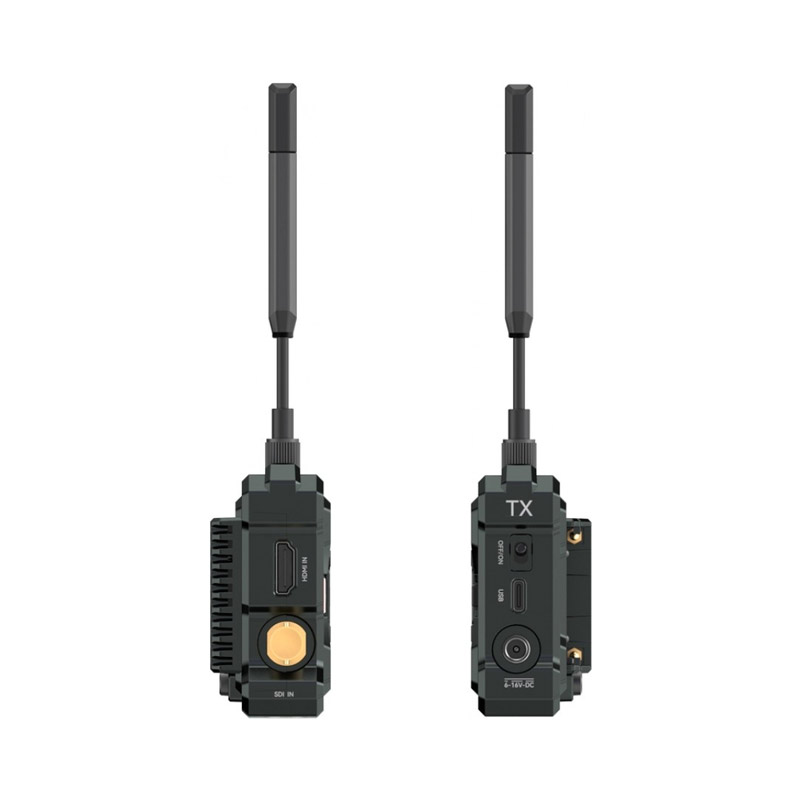

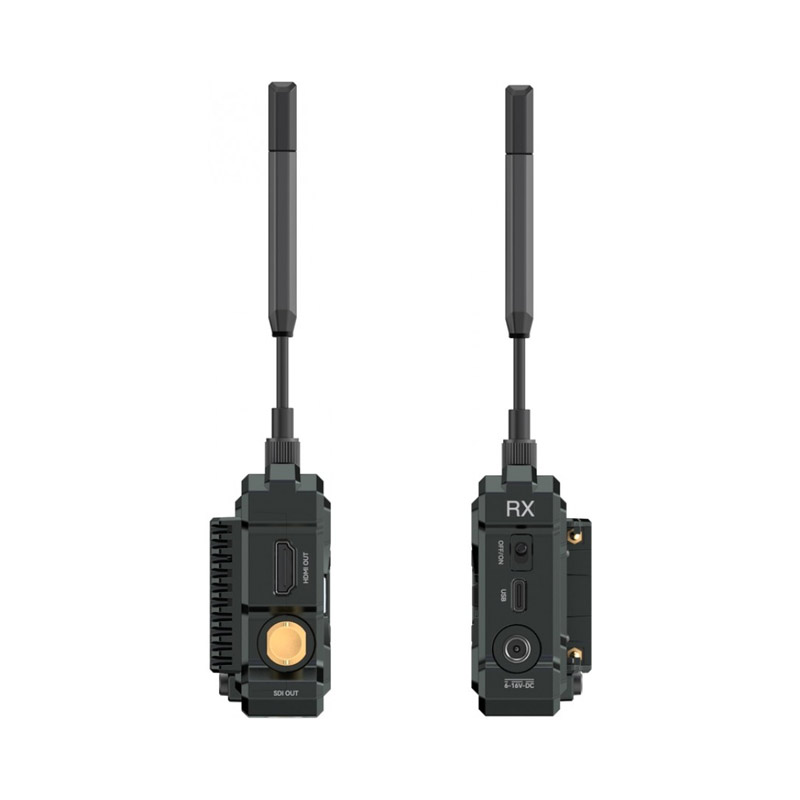

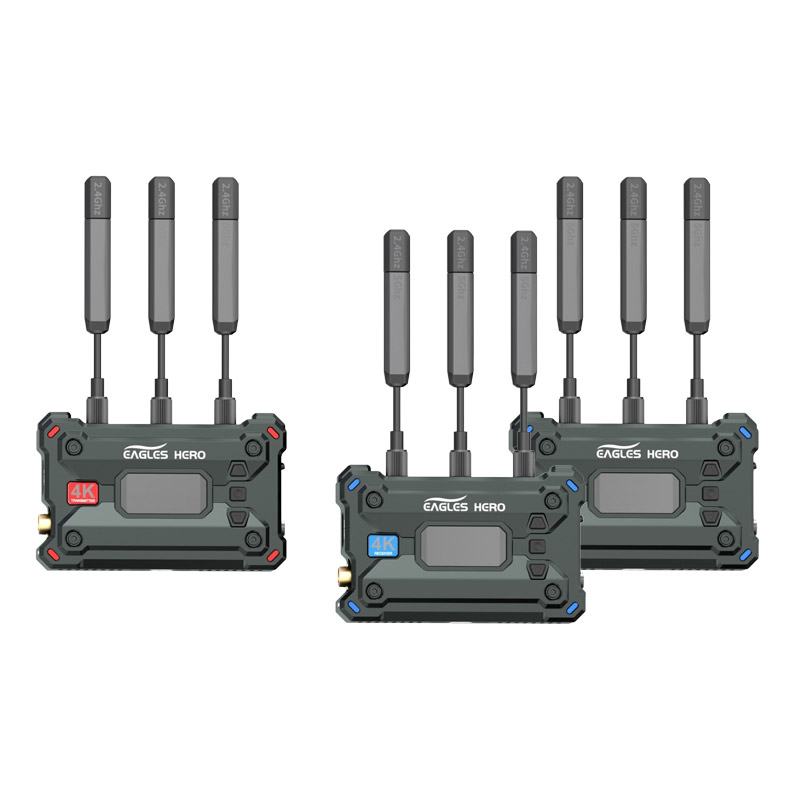

Eagles Hero Saturn S kit supports 4K UHD (3840×2160) 30p video transmission over distances up to 400 meters and includes one transmitter and two receivers. The transmitter features HDMI input up to 3840×2160 30p and SDI input up to 1920×1080 60p. Receivers are equipped with corresponding outputs. Signal latency does not exceed 0.05 s. Transmission operates on adaptive dual-band frequencies of 2.4 and 5 GHz. One transmitter can send video to two receivers and two mobile devices at 400 meters, or to four receivers at 200 meters in broadcast mode. The system supports UVC and RTMP protocols for live streaming. Mobile device operation requires the Eaglesview app. Power options include NP-F970 battery slot and DC input. Included: transmitter, 2× receivers, 12V-2A AC power adapter, transport case.

Battery

NP-F970

Inputs

HDMI, SDI

Outputs

HDMI, SDI

Net weight

Transmitter / Receiver: 207 g

Dimensions (W x H x D)

Transmitter / Receiver: 112×71.2×34.1 mm

Interfaces

USB Type-C

Max video resolution

4K UHD (3840×2160) 30p

Mount

Hot shoe (not included)

Power consumption

Transmitter 11 W / Receiver 8 W

Power system

battery, Mains

Radio frequency

2.4 / 5 GHz

Signal latency

<0.05 s

Signal range

up to 400 m

Supported signal formats

Max input: HDMI 3840×2160 30/25/24/29.97/23.98, SDI 1080p60/59.94/50/30/29.97/25/24/23.98, SDI 1080p60/59.94/50/30/29.97/25/24/23.98. Max output: HDMI 3840×2160 30/25/24/29.97/23.98
