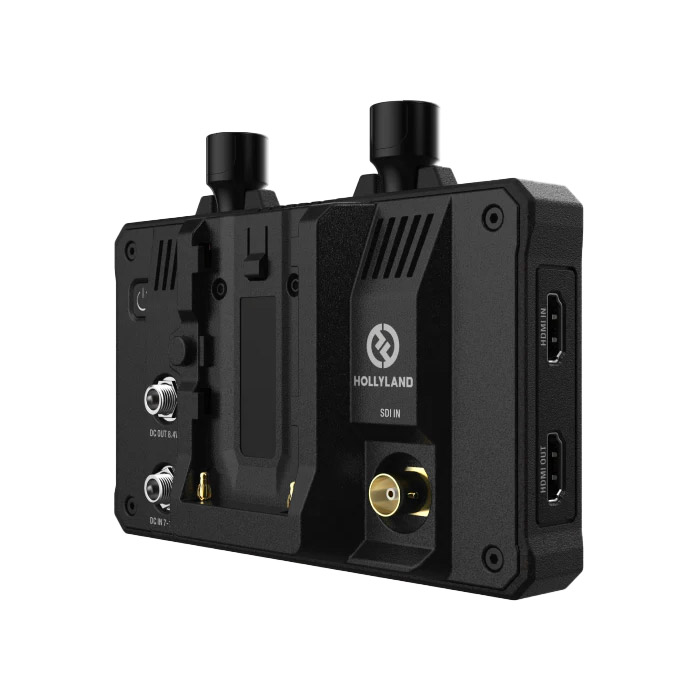

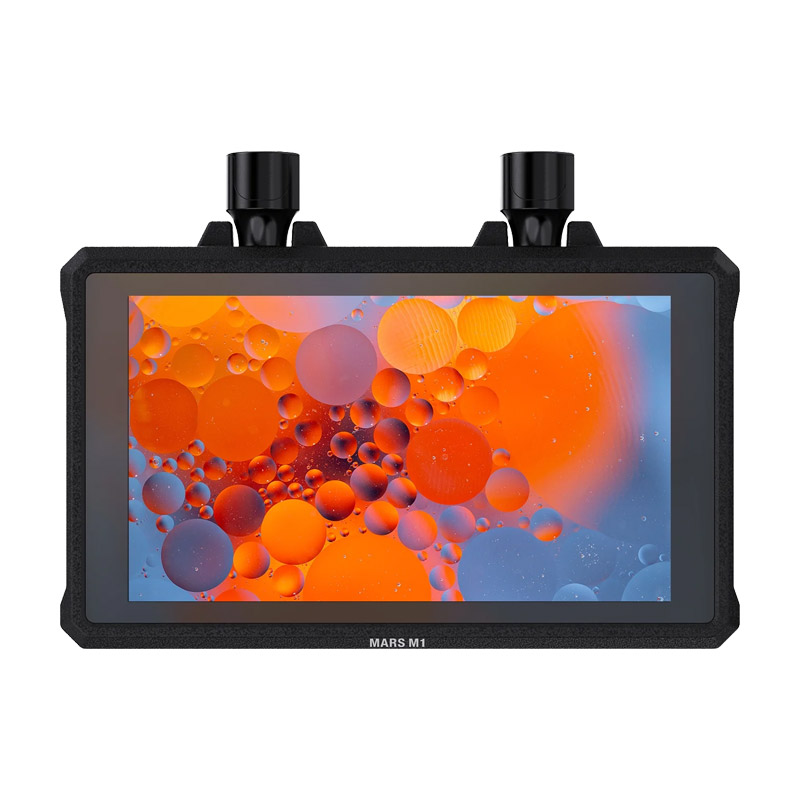

Hollyland Mars M1 Enhanced monitor transmitter

Category:
Brand:

Hollyland Mars M1 Enhanced is a 5.5″ 1920×1080 touchscreen monitor that can act as wireless TX/RX (up to 150 m, ~0.08 s), with HDMI/SDI inputs, HDMI output, 4K HDMI up to 4096×2160 30p, LUT loading via USB-C, and NP-F or D-Tap power.

31,00  / day

Clear dates

Hollyland Mars M1 Enhanced on-camera monitor with a 5.5-inch touchscreen can also function as a wireless transmitter or receiver, enabling video transmission up to 150 m with 0.08 s latency. HDMI and SDI ports are provided for signal input in monitor and transmitter modes, with an HDMI output available in all modes. 4K HDMI input/output supports resolutions up to 4096×2160 at 30 fps; in receiver mode up to 1920×1080 at 60 fps. For wireless operation, a second Mars M1 Enhanced unit or compatible devices (Mars 300 Pro, Mars 400S Pro, Mars 4K, Mars M1) must be rented separately. The device runs HollyOS and includes professional analysis tools and monitoring aids; full details are available in the user manual. Power is supplied via NP-F batteries or a D-Tap power source; AC power cable and batteries are not included. Display resolution is 1920×1080 px. The USB Type-C port allows loading custom 3D LUTs. The display supports the Rec. 709 color space. Two 1/4″ mounting points are provided for installation and accessory mounting. Included: Hollyland Mars M1 Enhanced monitor-transmitter, USB to Type-C adapter, D-Tap to DC power cable, transport case.

Battery

Sony F970 / F980

Inputs

1x 3G-SDI, 1x HDMI, USB Type-C

Outputs

1x HDMI, 3.5 mm jack

Net weight

400 g

Aspect ratio

16:9

Brightness

100 cd/m²

Contrast

1000:1

Dimensions (W x H x D)

152x96x40

Loop-through

Yes

Mounting threads

1/4" thread x2

Power consumption

16 W

Power system

battery, DC input from D-Tap

Radio frequency

5.1-5.8 GHz

Screen resolution

1920×1080

Screen size

5.5"

Signal conversion

Not supported

Signal latency

0.08 s

Signal range

up to 150 m

Supported signal formats

HDMI in/out: 4096x2160p30 (transmitter-monitor mode), HDMI out: 1920x1080p60 (receiver mode), Wireless transmission: 1920x1080p60

Type

touchscreen
