Hollyland Mars M1 monitor transmitter

Category:
Brand:

Hollyland Mars M1 is a 5.5″ 1920×1080 touchscreen monitor that can act as wireless TX/RX (up to 150 m, ~0.08 s), with HDMI/SDI inputs, HDMI output, 4K HDMI up to 4096×2160 30p, LUT loading via USB-C, and NP-F power.

29,50  / day

Clear dates

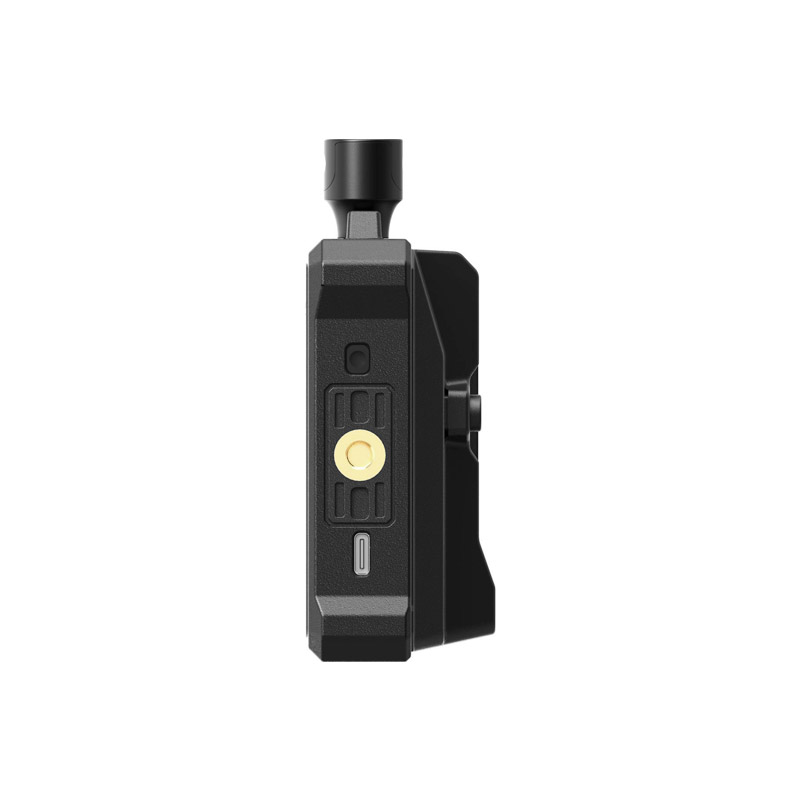

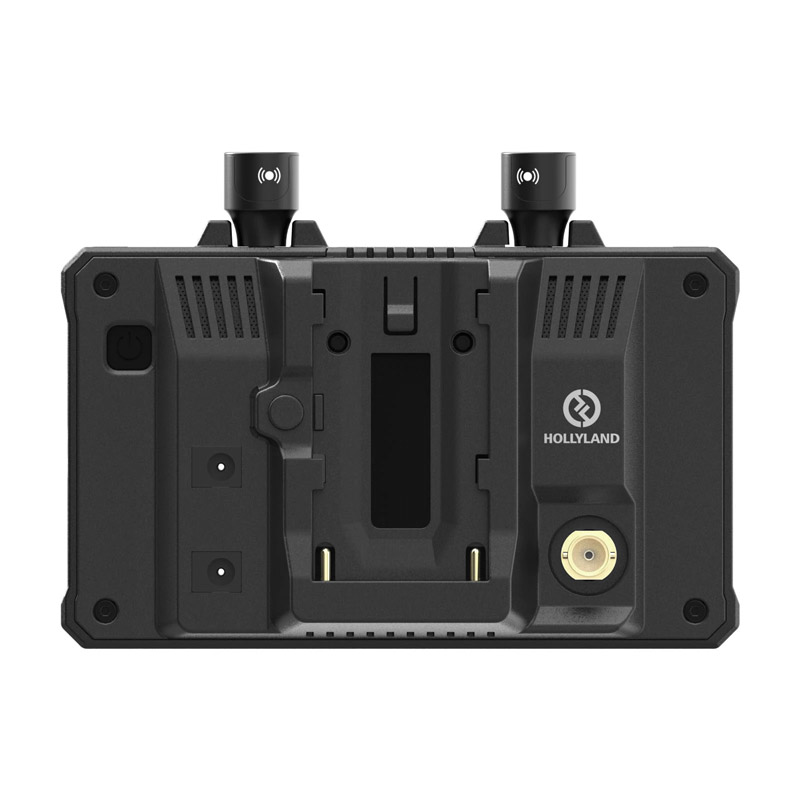

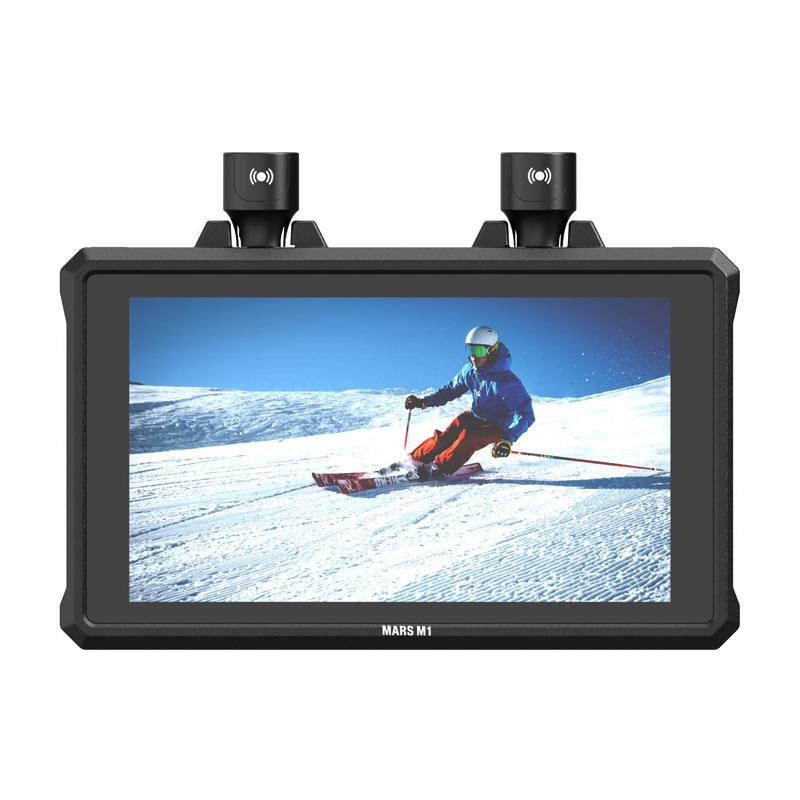

Hollyland Mars M1 on-camera monitor with a 5.5-inch touchscreen can also operate as a wireless transmitter or receiver, transmitting video up to 150 m with 0.08 s latency. HDMI and SDI ports are available for signal input in monitor and transmitter modes, with an HDMI output in all modes. 4K HDMI input/output supports up to 4096×2160 at 30 fps; in receiver mode up to 1920×1080 at 60 fps. For wireless transmission, a second Mars M1 unit or a compatible Hollyland Mars 400S Pro kit must be rented separately. Power is supplied via NP-F batteries; AC power cable and batteries are not included. Display resolution is 1920×1080 px. The USB Type-C port supports loading custom 3D LUTs. The display supports the Rec. 709 color space and includes built-in monitoring tools such as exposure assistance. Two 1/4″ mounting points are provided for mounting and accessories. Included: Hollyland Mars M1 monitor-transmitter, USB to Type-C adapter, D-Tap power cable, transport case. Video presentation available in English.

Battery

Sony F970 / F980

Inputs

1x 3G-SDI, 1x HDMI, USB Type-C

Outputs

1x HDMI, 3.5 mm jack

Net weight

380 g

Aspect ratio

16:9

Brightness

1100 cd/m²

Contrast

1000:1

Dimensions (W x H x D)

152x96x40

Loop-through

Yes

Mounting threads

1/4" thread x2

Power consumption

14.5 W

Power system

battery

Radio frequency

5.1-5.8 GHz

Screen resolution

1920×1080

Screen size

5.5"

Signal conversion

Not supported

Signal latency

0.08 s

Signal range

up to 150 m

Supported signal formats

HDMI in/out: 4096x2160p30 (transmitter-monitor mode), HDMI out: 1920x1080p60 (receiver mode), Wireless transmission: 1920x1080p60

Type

touchscreen
