Name: Lilliput 7 in H7S 4K HDMI 3G-SDI monitor
Brand: Lilliput
SKU: 9190
Availability: InStock

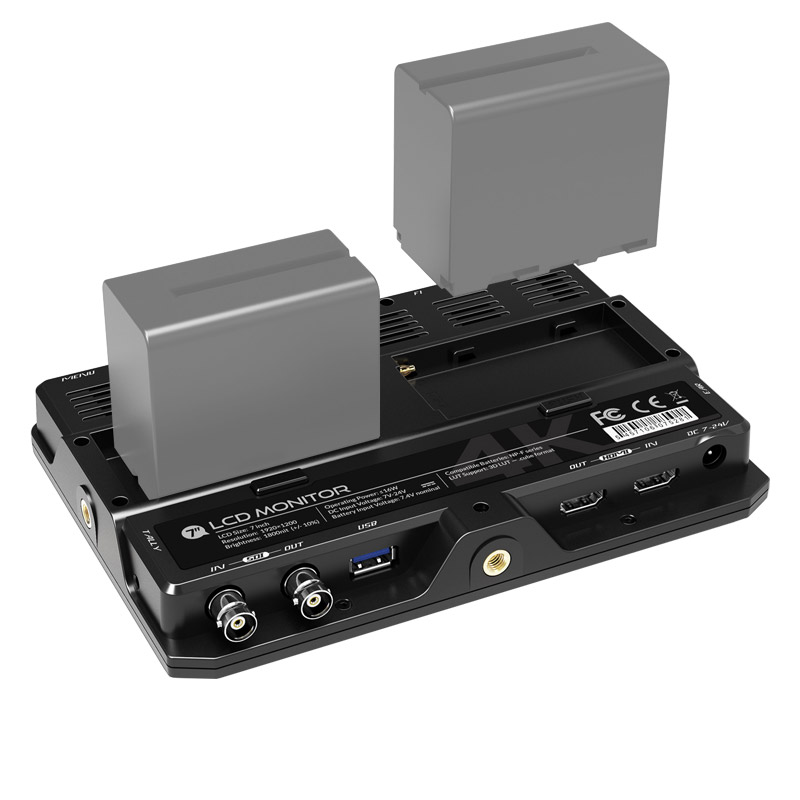

Lilliput 7 in H7S 4K HDMI 3G-SDI monitor

Lilliput H7S is a 7″ 1920×1200 on-camera monitor with 3G-SDI and HDMI I/O, 1800 nits brightness, 4K HDMI input support (DCI 24p / UHD 30p), HDR, LUT loading via USB, timecode/false color/histogram, NP-F or AC power, and 4× 1/4″-20 mounts.

20,50 € / day

Lilliput 7″ H7S on-camera monitor with 1920×1200 resolution features 4K HDMI and 3G-SDI input and output ports. Brightness up to 1800 nits ensures visibility in challenging lighting conditions such as direct sunlight. HDMI supports up to 4096×2160 at 24p and 3840×2160 at 30p. HDR mode enhances detail in highlights and shadows. A USB port allows loading custom 3D LUTs. Additional tools include timecode, false color, and histogram.

Included: Lilliput 7″ H7S 4K HDMI 3G-SDI monitor, power adapter, cold shoe mount, transport case.

Battery	Sony F970 / F980
Inputs	1x 3G-SDI, 1x HDMI, USB
Outputs	1x 3G-SDI, 1x HDMI, 3.5 mm jack, Tally
Net weight	550 g
Aspect ratio	16:10
Brightness	1800 cd/m²
Contrast	1200:1
Dimensions (W x H x D)	225x155x23 mm
Loop-through	Yes
Mounting threads	1/4" thread x4
Power consumption	16 W
Power system	battery, Mains
Screen resolution	1920×1200
Screen size	7"
Signal conversion	Not supported
Supported signal formats	3G-SDI: 1920x1080p60, HDMI in/out: 4096x2160p24 / 3840x2160p30
Type	LED
Viewing angle	160°/160°
