TVLogic 24″ multi-format HD/SD LCD monitor supports simultaneous display from up to four sources (cameras). Maximum output format is 1920×1200 (16:10), pixel pitch 0.27 mm. Viewing angle is 178° both vertically and horizontally. Contrast ratio: 1000:1.

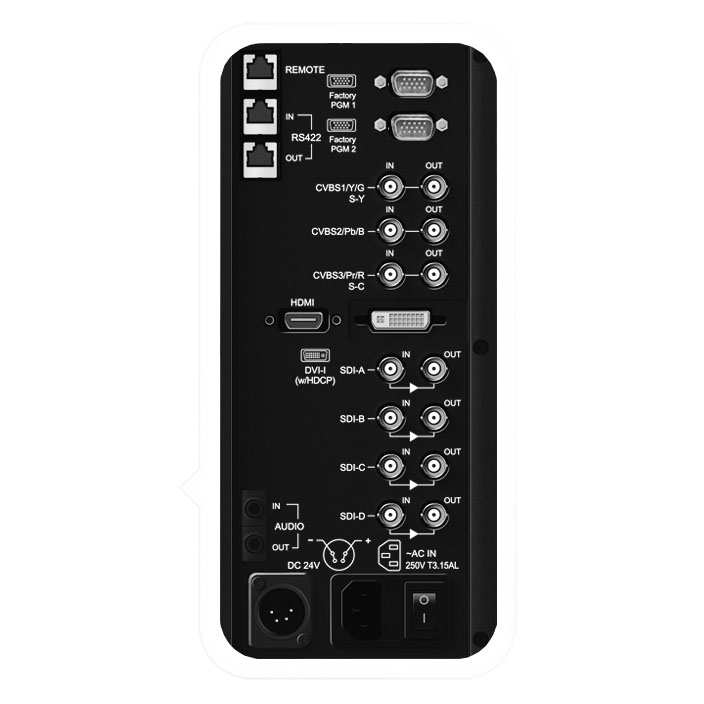

Inputs:
– Analog: Composite / Y/C / Component / RGB
– 4× HD/SD SDI
– HDMI: 480i/480p/720p/1080i/1080p & VESA/IBM modes
– DVI-Analog: 640×480 / 800×600 / 1024×768 / 1280×768 / 1280×1024 / 720×400
– DVI-Digital: 640×480 / 800×600 / 1024×768 / 1280×768 / 1280×1024 / 720×400 / 1600×1200 / 1920×1200 / 1920×1080
– Stereo audio (3.5 mm jack)
Input display modes:
– 4 video
– 3 video + 1 Waveform/Vectorscope
– 2 video + 2 Waveform/Vectorscope
– 1 video + 1 Waveform/Vectorscope
– 1 main video + 3 smaller videos
Built-in tools: Waveform/Vectorscope, 16-channel SDI audio level meters, timecode display, UMD, built-in speakers. Supports TVLogic Color Calibration utilities and displays timecode indication.
Included: TVLogic LQM-241W 24″ monitor, acrylic protective screen, metal stand, power cable, transport case.
