Name: TVLogic LVM-173W-3G 17 in monitor
Brand: TVLogic
SKU: 9288
Availability: InStock

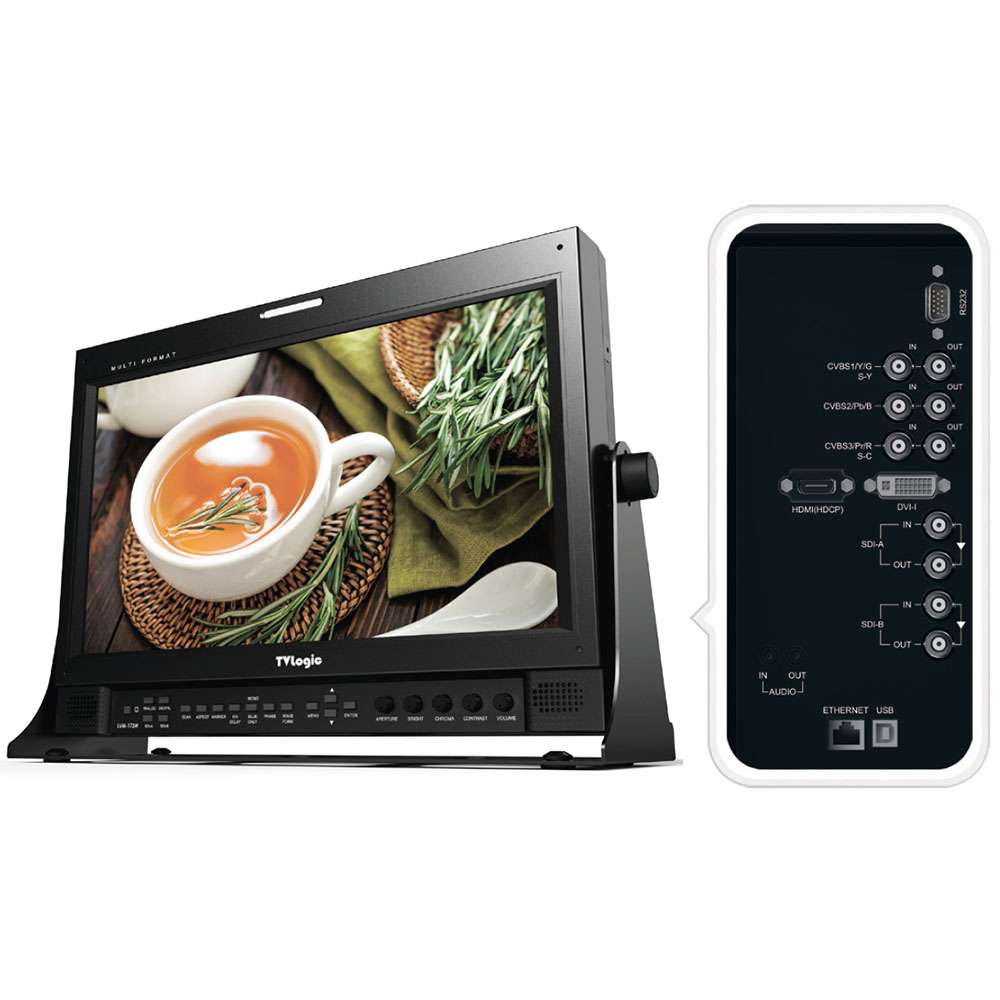

TVLogic LVM-173W-3G 17 in monitor

TVLogic LVM-173W-3G is a director’s monitor with dual SDI inputs, SDI pass-through, waveform/vectorscope, 16-ch audio meters, timecode, speakers, and support for 3G/Dual-Link and 1080p60.

59,00 € / day

Director’s monitor with 2 HD/SD SDI inputs, HD viewing format (1366×768), mini-jack audio input, timecode display, and additional features. Allows viewing feeds from two cameras. Includes built-in Waveform/Vectorscope, 16-channel SDI audio level meters, built-in speakers, supports 3G / Dual-Link 4:4:4 and 1080p60, and includes focus assist.
The TVLogic LVM-173W-3G provides BNC pass-through, allowing simple signal distribution to two director’s monitors.

Included: TVLogic LVM-173W-3G monitor, 3 m power cable, V-Mount power adapter, transport case.

Battery	V-Mount
Inputs	1x 3.5 mm jack, 1x DVI (VESA/IBM modes), 1x HDMI, 2x 3G-SDI, Component, Composite, Y/C
Outputs	1x BNC analog composite, 2x BNC 3G-SDI, 3x BNC analog component
Net weight	7.25 kg
Aspect ratio	16:9
Brightness	350 cd/m²
Contrast	900:1
Dimensions (W x H x D)	474.2×327.8×150 mm
Loop-through	Yes
Power system	battery, Mains
Quad-split	No
Screen resolution	1366×768
Screen size	17"
Signal conversion	Not supported
Supported signal formats	SDI: 1080p 60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF. HDMI: 480i/480p/576i/576p/720p/1080i/1080p/640×480/720×400/800×600/1024×768/1280×1024/1366×768
Viewing angle	178°/178°
