Name: TVLogic TSM-232W 23 in monitor
Brand: TVLogic
SKU: 9291
Availability: InStock

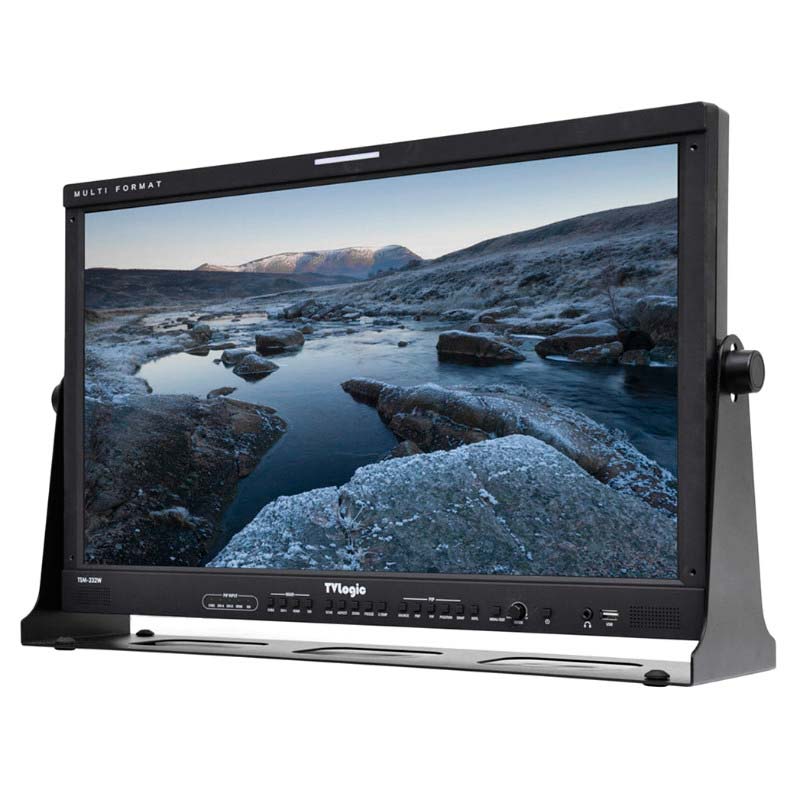

TVLogic TSM-232W 23 in monitor

TVLogic TSM-232W is a 23″ 1920×1080 IPS director’s monitor with HDMI, DVI, and SDI/composite loop-through inputs, and no HDMI-to-SDI conversion.

47,00 € / day

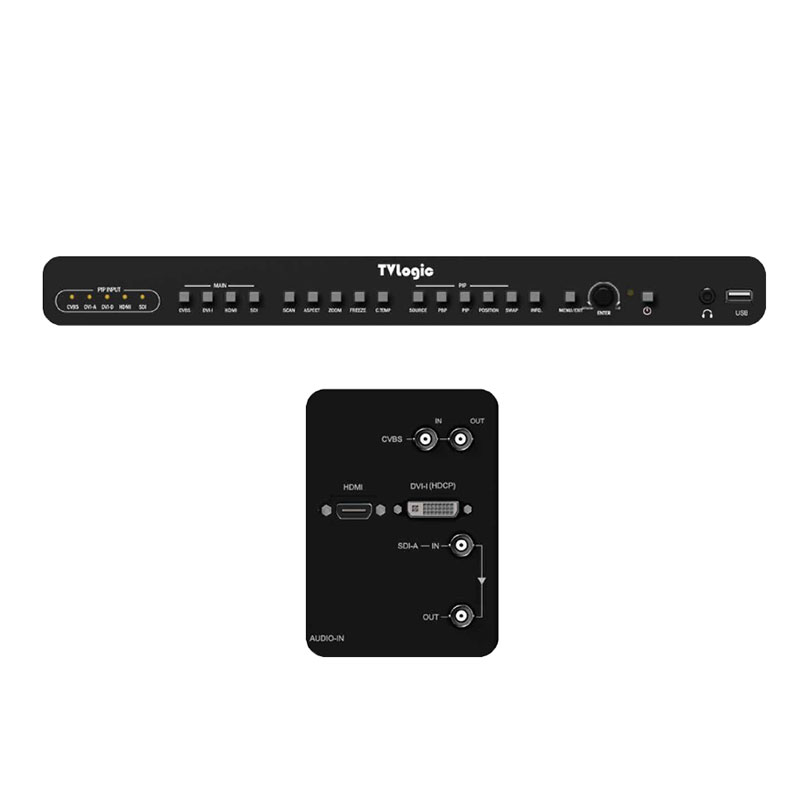

TVLogic TSM-232W simple multi-format director’s monitor with a 23″ screen is suitable for single-camera shoots. The Full HD 1920×1080 (16:9) IPS panel with 0.2653 mm pixel pitch provides high image quality. Viewing angle is 178°, brightness 300 cd/m², contrast 1000:1. The monitor includes 1× HDMI input, 1× stereo audio (3.5 mm jack), 1× analog/digital DVI, and 2× BNC inputs. One BNC is loop-through for 3G/HD-SDI/SD-SDI, the other is loop-through analog Composite. The monitor does not convert HDMI to SDI.

Included: TVLogic TSM-232W monitor, power cable, transport case.

Inputs	1x 3.5 mm jack, 1x analog composite, 1x DVI, 1x HDMI, 1x SDI
Outputs	1x 3.5 mm jack, 1x analog composite, 1x SDI
Net weight	12.3 kg
Aspect ratio	16:9
Brightness	300 cd/m²
Contrast	1000:1
Dimensions (W x H x D)	381.8×552.5×142 mm
Loop-through	Yes
Power system	Mains
Quad-split	No
Screen resolution	1920×1080
Screen size	23"
Signal conversion	Not supported
Type	IPS LCD
Viewing angle	178°/178°
