Vaxis Storm 1000s wireless video transmitter

Category:
Brand:

Vaxis Storm 1000s wireless video kit with TX (SDI in/out, HDMI in, 2-pin Lemo, micro-USB) and RX (2× SDI out, HDMI out, 2-pin Lemo, micro-USB), 1080p60, up to 350 m, zero latency; internal antennas, OLED control, TX 290 g / RX 435 g, RX V-mount plate.

91,00  / day

Clear dates

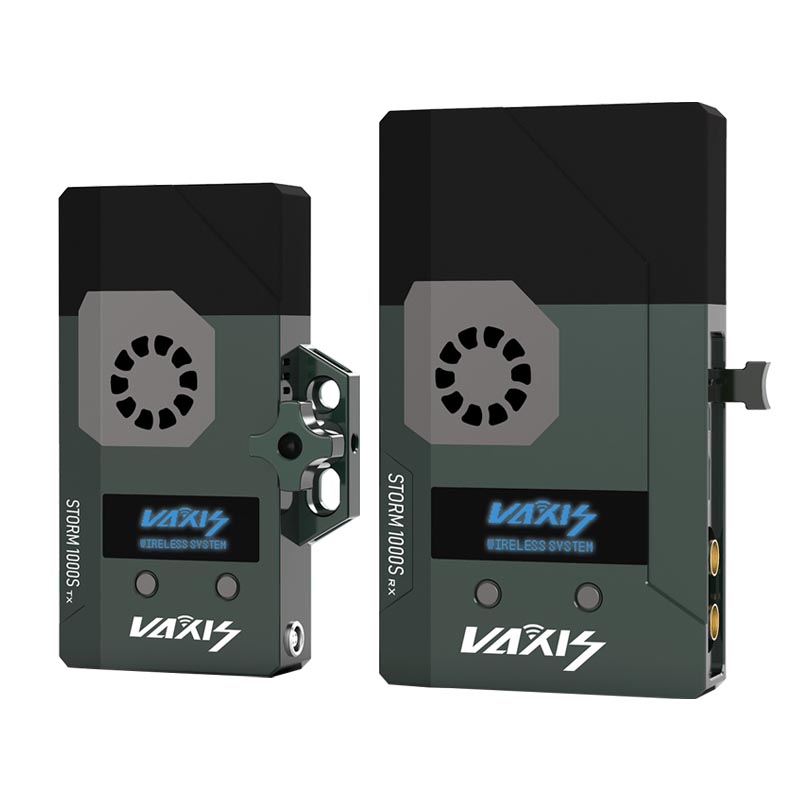

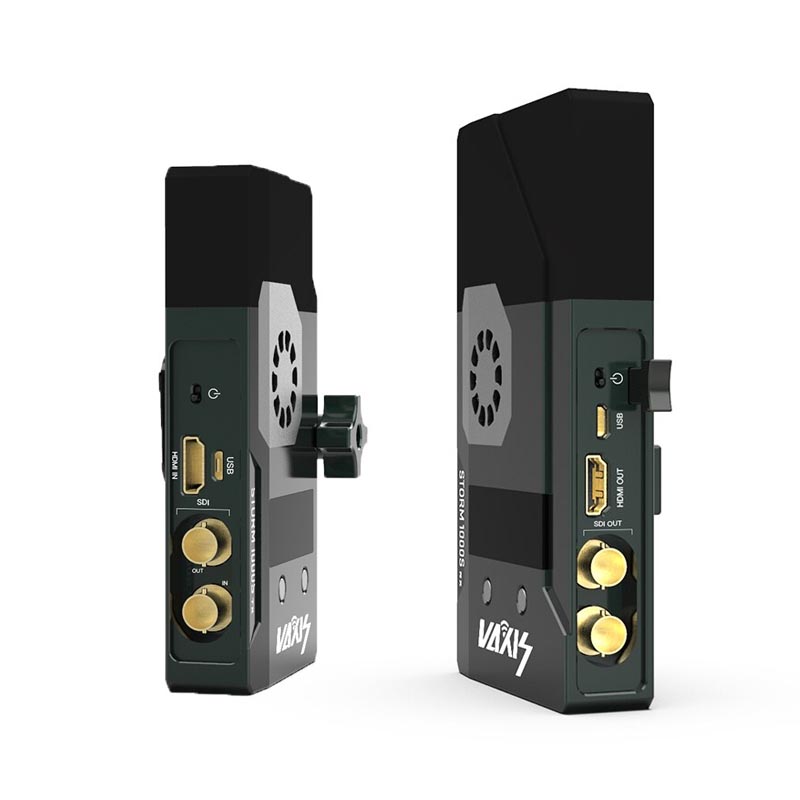

Vaxis Storm 1000s kit is designed for wireless video transmission at distances up to 350 meters with zero latency and video quality up to 1080p/60. The system features a compact design without external antennas. One transmitter can simultaneously transmit to two receivers. The transmitter body includes SDI input and output, HDMI input, 2-pin Lemo power input, and micro-USB port. The receiver features two SDI outputs, one HDMI output, 2-pin Lemo power input, and micro-USB port. Both units include active cooling; fan speed and core settings are controlled via an OLED display. The transmitter has 1/4″ and 3/8″ mounting threads. The receiver is equipped with a V-Mount battery plate. Power is supplied via 2-pin Lemo to D-Tap cables; batteries are rented separately. Transmitter weight is 290 g, receiver weight is 435 g. Included: transmitter, receiver, 2× 2-pin Lemo to D-Tap cables, 1/4″ and 3/8″ screws, transport case.

Inputs

2-pin Lemo power input, HDMI, microUSB, SDI

Outputs

HDMI, SDI

Dimensions

Receiver 156.5×91.5×24.5 mm, Transmitter 138×69.5×24.5 mm

Net weight

Receiver 435 g, Transmitter 290 g

Active cooling

Yes

Max video resolution

Full HD (1920×1080) 60p

Mounting threads

1/4" and 3/8" threads

Number of channels

20

Power requirements

7-36 V

Radio frequency

20 or 40 MHz

Signal latency

<0.001 s

Signal range

up to 350 m
